Electrical Panel Economics
Engraved Phenolic Plates vs. Foam-Backed Raised Panel Labels (B-593)
Traditional rotary engraved plastic plates have bottlenecked industrial panel shops for decades with slow vendor lead times and high unit costs. See how Brady B-593 Raised Panel Polyester delivers an identical premium look with 80% lower cost and 15-second printing.
Sponsored Electrical Panel Building Solutions
Industrial Label Printers & Materials
Relevant Technical Equipment & Consumables [Ad Slot guide-top]
1. Head-to-Head Economic & Technical Comparison

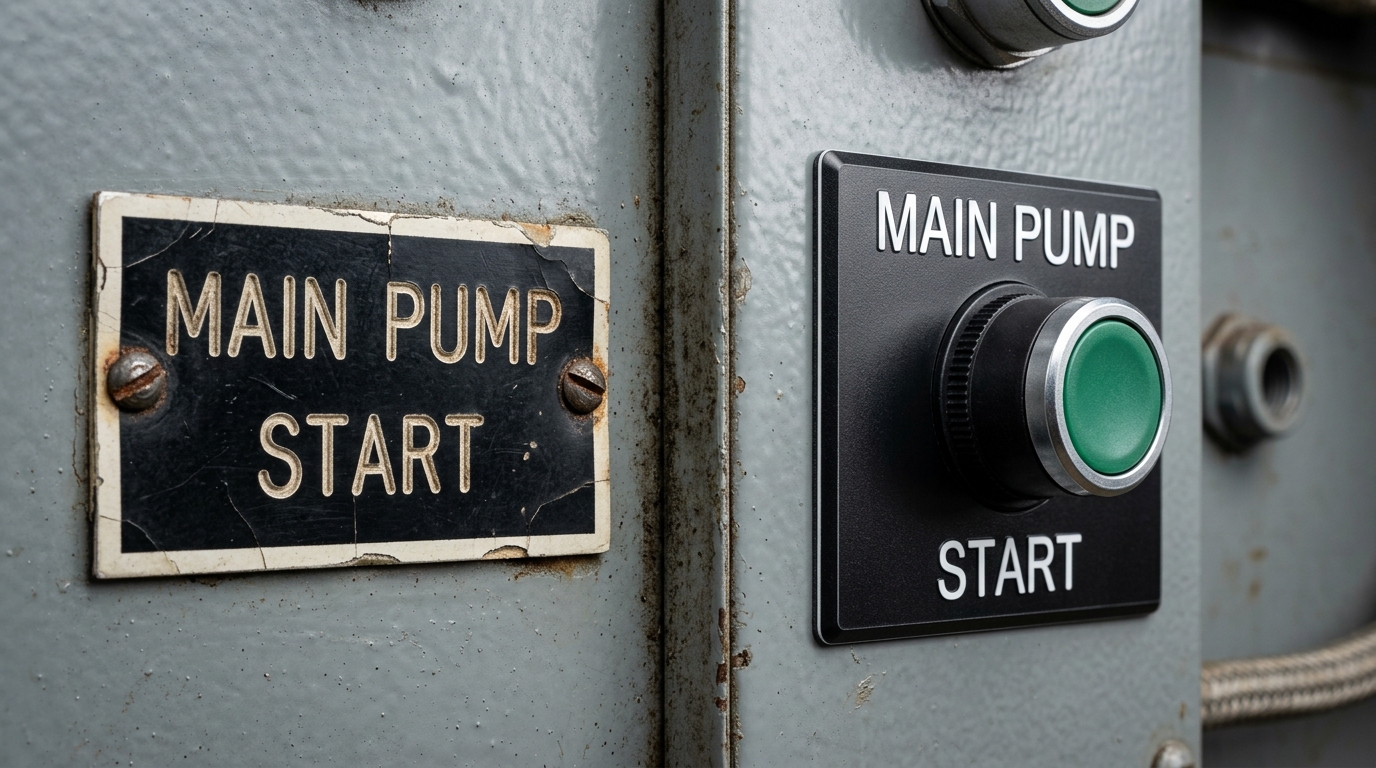

Direct comparison between traditional rotary-engraved 2-ply phenolic laminate and Brady B-593 Raised Panel Polyester:
| Evaluation Metric | Traditional Engraved Phenolic Plates | Brady B-593 Raised Panel (Thermal Printed) | Advantage |
|---|---|---|---|
| Turnaround & Production Speed | 3 to 14 Days (Requires outside CNC machine shop or manual rotary engraving) | 15 Seconds On-Demand (Printed right on the factory floor on an i3300, BMP71, or i5100) | B-593 (Instant on-demand creation) |
| Average Cost per 2" x 1" Plate | $8.00 – $15.00+ per plate (Labor, machining, setup charges) | $1.25 – $2.10 per label (Material cost only, zero setup fees) | B-593 (Up to 85% cost reduction) |
| Physical Profile & Feel | Rigid 2-ply plastic (1.5mm / 1/16" thick) with beveled edge | 0.65 mm foam-backed polyester delivering identical raised aesthetic and tactile feel | Identical professional finish |
| Mounting & Surface Adhesion | Drilled holes with screws or rivets (Creates potential NEMA enclosure leaks) | Ultra-high-bond compressible foam adhesive conforms over rough paint and texture | B-593 (No drilling required, preserves NEMA 4X / IP66 ratings) |
| Regulatory Approvals | Varies by plastic substrate vendor | UL 969 Recognized (File MH17154) and CSA Accepted (File 041833) | B-593 (Pre-certified for global export) |
2. Common Push Button & Enclosure Formats
22.5 mm Push-Button Legend Plates
Pre-cut circular holes centered for standard 22mm pilot lights, emergency stop mushrooms, and selector switches.
30.5 mm NEMA Heavy-Duty Operators
Engineered for heavy-duty industrial 30mm oil-tight push buttons and key switches across industrial machinery.
Rectangular Equipment & Serial Plates
Available in sizes from 0.75" x 0.35" up to 4.0" x 1.5" in White, Silver, Black, Red, Yellow, and Green.
