What is the difference between acrylic and rubber-based label adhesives?

Acrylics are the long-haul chemistry: excellent UV, temperature, and aging resistance, with adhesion that builds over 24–72 hours as the adhesive wets out the surface. Rubber-based adhesives deliver much higher initial grab — which is why aggressive stocks like Brady B-483 (permanent rubber-based, 155 oz/in on stainless at just 20 minutes dwell) own the difficult surfaces: powder coat, textured paint, low-energy plastics. The trade: rubber chemistries are generally less UV- and oxidation-stable than acrylics, so acrylic remains the default where the surface allows it.

What does peel adhesion in oz/in actually mean?

It is the force to peel a 1-inch-wide strip off a test panel, measured under a standard method (ASTM D 1000 or PSTC-101), at a stated dwell time and angle. The dwell time is the fine print that matters: B-423 measures 51 oz/in on stainless at 20 minutes but climbs substantially by 24 hours as the acrylic flows into surface microstructure. Comparing one material’s 24-hour number against another’s 20-minute number is the classic datasheet trap.

Why did my label fall off even though it stuck fine at first?

Usually one of three killers: the surface energy was too low for the adhesive (powder coat, PP/PE plastics), the surface was contaminated (oil film, mold release, fingerprints), or the label was applied below the adhesive’s minimum application temperature, so it never wet out. Initial tack is a poor predictor — an adhesive can grab on contact and still dewet over days on a low-energy or oily surface.

When should I use a removable or repositionable adhesive?

When the surface outranks the label: rental equipment, painted machine tools, 5S shadow boards, shelving that gets re-slotted. Repositionable systems like Brady B-581 vinyl are engineered to peel cleanly without residue years later. The catalog reality check: of 603 material families, only a handful are removable — permanence is the default assumption in industrial identification, so removability must be specified deliberately.

Home GuidesAdhesive Selection

Adhesive Engineering

Adhesive Selection: Acrylic vs. Rubber, Permanent vs. Removable

When a label fails in the field, the face stock usually gets blamed and the adhesive is usually guilty. Every B-number pairs its film with a specific adhesive chemistry, and those chemistries split into a small taxonomy with sharply different behavior on difficult surfaces. Learn the taxonomy, then learn the one lab detail — dwell time — that makes datasheet peel numbers comparable, and most "mystery" failures stop being mysterious.

Adhesive wet-out on textured powder-coated steel — the surface class that separates rubber-based from standard acrylic adhesives

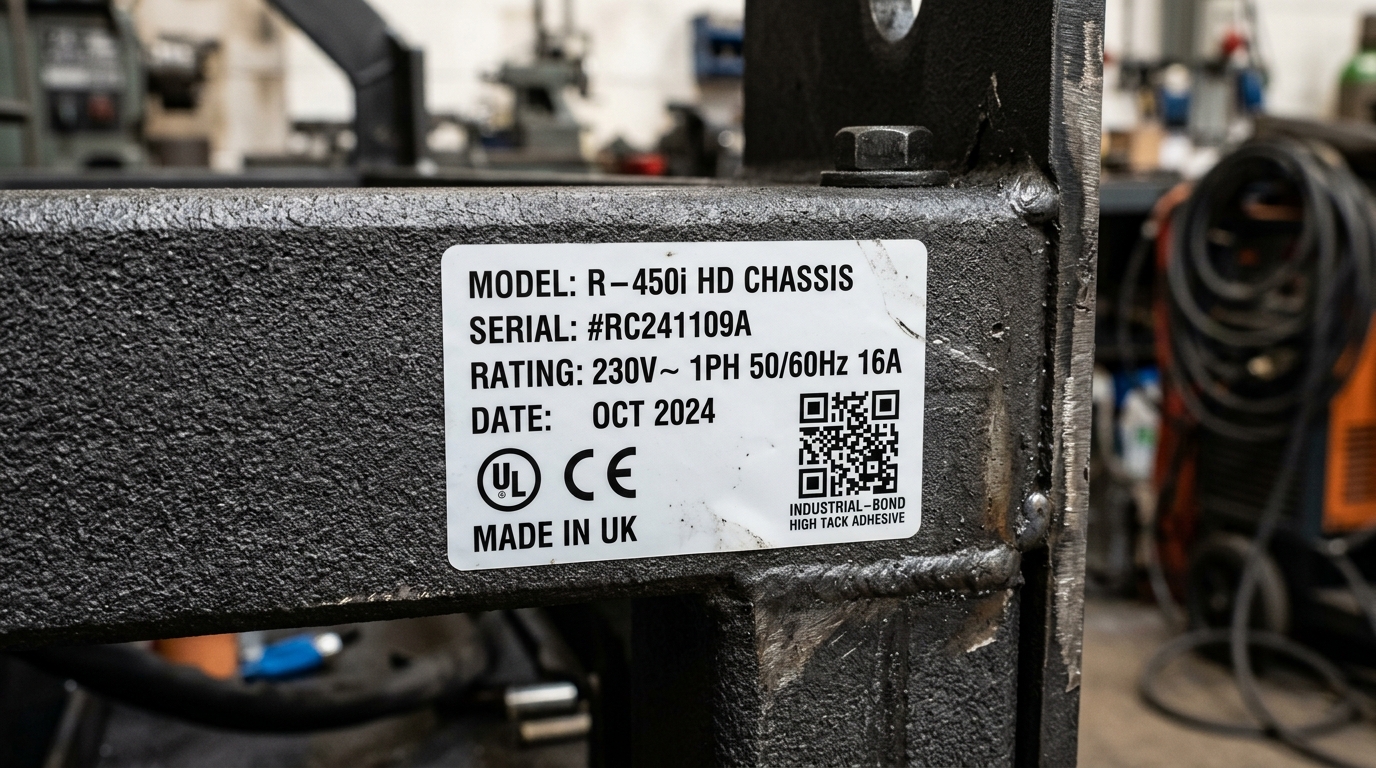

Figure 1: Textured powder coat — where standard acrylics bridge the texture peaks and rubber-based chemistries flow into the valleys.ASTM D 1000 test surface class

1. The Adhesive Taxonomy — With Catalog Counts

Counts below come from parsing all 603 material TDS records in our database. Two numbers tell the story: permanent acrylic dominates with 137 families, and a full 302 families use no adhesive at all — heat-shrink and mechanical attachment are half the catalog.

Chemistry	Catalog Share	Exemplars	Behavior Profile	Pick It For
Permanent Acrylic	137 families	B-423, B-427, B-499, B-595, B-724	The catalog default. Ages gracefully, resists UV and temperature swings, builds strength over 24–72 h.	Any clean, medium-to-high energy surface: bare metal, anodize, ABS, polycarbonate.
Permanent Rubber-Based	17+ families	B-483, B-514 floor graphics	Aggressive initial grab and superior wet-out on low-energy and textured surfaces; less UV-stable than acrylic.	Powder coat, textured paint, PP/PE plastics, oily-shop conditions — the problem surfaces.
Removable / Repositionable Acrylic	~10 families	B-581 vinyl, B-816 DT paper	Low ultimate adhesion by design; peels clean without residue after years.	5S programs, rental assets, temporary WIP — anywhere the paint matters more than the label.
Foam-Backed Acrylic	Raised-panel class	B-593 (7.9 mil system)	A foam core bridges texture and lets the plate sit proud like an engraved legend plate — 189 oz/in on stainless at 20 min.	Push-button legend plates and enclosure nameplates replacing drilled phenolic.
Specialty Systems	Niche but critical	Static-dissipative acrylics (9 families), both-side-tacky constructions (12)	Electronics-safe dissipative bonds; double-faced constructions for laminating and flag-building.	ESD-controlled assembly areas; self-laminating flag constructions.
No Adhesive At All	302 families	B-342 / B-7642 heat-shrink, B-509 magnetic	Half the catalog holds on mechanically — shrink recovery, magnetism, cable ties. Zero adhesive, zero adhesive failure modes.	Wire sleeves before termination; repositionable rack ID; harsh-solvent immersion.

2. Dwell Time: The Fine Print That Makes Peel Numbers Comparable

Pressure-sensitive adhesion is not instantaneous — it is a viscous flow process. On contact, the adhesive touches only the peaks of the surface microstructure; over the following hours it flows into the valleys, and measured peel force climbs accordingly. TDS values therefore always state a dwell: 15 or 20 minutes for the "fresh" number, 24 or 72 hours for the built number. Here are the real figures from four families, same test class, different chemistries:

Material System	Short Dwell	Built Adhesion	Panel & Method
B-483 (rubber-based, polyester)	155 oz/in	climbs higher — spec sheet lists 24 h build	Stainless steel, ASTM D 1000
B-593 (foam-backed acrylic)	189 oz/in	continues building	Stainless steel, ASTM D 1000
B-595 (permanent acrylic vinyl)	80 oz/in @ 15 min	85 oz/in @ 72 h	Steel, PSTC-101
B-423 (permanent acrylic polyester)	51 oz/in	substantially higher @ 24 h	Stainless steel, ASTM D 1000

Practical consequence on the shop floor

Do not stress-test a label five minutes after application and call the result — the acrylic has not finished wetting out. Apply with firm pressure, at or above the minimum application temperature, and give permanent acrylics 24–72 hours before wash-down, solvent wipe, or peel judgment. Rubber-based systems are closer to full strength immediately, which is exactly why they win time-critical field work.

3. The Pre-Application Checklist That Prevents 90% of Failures

Identify the surface energy class first. Powder coat and PP/PE plastics are low-energy — start from rubber-based (B-483 class) or the specific fixes in the powder coat & LSE guide, not from the general catalog.
Wipe with IPA and let it flash off. Oil films, mold release, and silicone polish defeat every chemistry on this page.
Check minimum application temperature on the TDS — cold-weather application below it means the adhesive never flows, regardless of chemistry.
Apply firm, even pressure across the full label — adhesion is proportional to true contact area, and light placement leaves the valleys unwetted.
Respect the cure window before judging: 24–72 h for acrylics.
For removable programs, verify clean-peel behavior on YOUR paint, aged — repositionable ratings assume sound, cured finishes.
