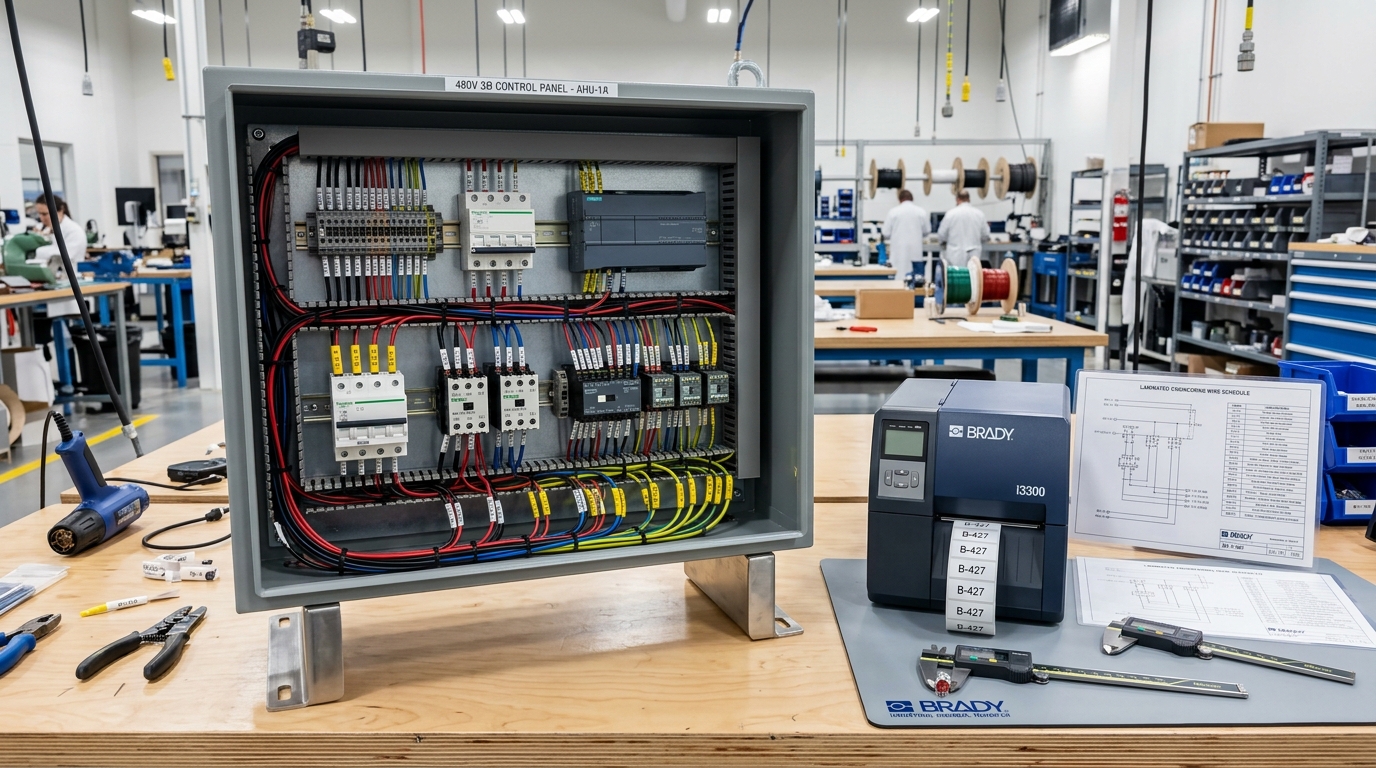

Wire Harness & Electrical Panel Schedule BOM Generator
Transform wiring schedules, conductor gauge lists, and panel device schedules into an optimized Brady Bill of Materials. Automatically calculates roll packaging counts, accounts for waste margins, pairs thermal transfer ribbons, and outputs 1-click purchase requisitions with Grainger & Graybar part numbers.
Wiring & Component Schedule (6 Lines)
Add wire gauges, push buttons, terminal blocks, or import your CAD wire list below.
| Line Description / Circuit Tag | Component / Conductor | Format Preference | Marking Ends | Quantity | Action |
|---|---|---|---|---|---|
| Standard Component Format | 1x Unit | ||||
| Standard Component Format | 1x Unit | ||||
| Standard Component Format | 1x Unit |
Procurement & Packaging Package (9 Orderable Line Items)
| Brady Part # | Distributor SKU | Material / Type | Dimensions | Rolls to Order | Total Labels | Surplus Spares | List Price | Extended Total |
|---|---|---|---|---|---|---|---|---|
M21-1000-427 Pair Ribbon: R4300 | Grainger: 4KB40 | B-427 Self-Laminating Vinyl Wire Wrap (1.25" to 1.50" H) | 1.00 in W x 1.50 in H (0.50" print zone) | 2 Rolls | 400 pcs | +136 spares | $44.50 | $89.00 |
M21-250-C-342 Pair Ribbon: R6600 | Grainger: 4KB34 | B-342 PermaSleeve 3:1 (1/4" / 0.250") Mil-Spec | 0.250 in Dia (0.083" to 0.240" OD) | 1 Roll | 100 pcs | +47 spares | $56.50 | $56.50 |
M21-750-427 Pair Ribbon: R4300 | Grainger: 4KB39 | B-427 Self-Laminating Vinyl Wire Wrap (1.00" H) | 0.75 in W x 1.00 in H (0.375" print zone) | 1 Roll | 275 pcs | +143 spares | $38.49 | $38.49 |
M21-593-22-BK Pair Ribbon: R6000HF | Grainger: 49NN12 | B-593 Raised Panel Legend Plate (22mm) | 1.20 in x 1.50 in (22.5mm hole) | 1 Roll | 50 pcs | +41 spares | $68.50 | $68.50 |
M21-593-30-BK Pair Ribbon: R6000HF | Grainger: 49NN15 | B-593 Raised Panel Legend Plate (30.5mm) | 1.50 in x 1.80 in (30.5mm hole) | 1 Roll | 50 pcs | +47 spares | $74.20 | $74.20 |
M21-375-499 Pair Ribbon: R4300 | Grainger: 4KB44 | B-499 Conformable Nylon Cloth Terminal Strip | 0.375 in W x 16 ft L (Continuous) | 1 Roll | 250 pcs | +96 spares | $26.50 | $26.50 |
B-595-ARC-FLASH Pair Ribbon: R10000 | Grainger: 4KB88 | B-595 UL 508A Danger: High Voltage Arc Flash Decal | 3.50 in x 5.00 in | 1 Roll | 5 pcs | +1 spares | $32.50 | $32.50 |
THT-17-483A-3 Pair Ribbon: R6000HF | Grainger: 38JH91 | B-483A SCCR Short Circuit Rating & Serial Plate | 2.00 in x 1.00 in | 1 Roll | 3,000 pcs | +2996 spares | $185.00 | $185.00 |
M21-500-595-GR Pair Ribbon: R10000 | Grainger: 4KB74 | B-595 Grounding & PE Conductor Green Markers | 0.50 in W x 25 ft L | 1 Roll | 100 pcs | +76 spares | $28.50 | $28.50 |
Conductor Sizing & Brady Label Compatibility Reference Table
Pre-calculated outer diameters, wire circumferences, and standard Brady SKUs across nominal MTW panel conductors.
| Conductor (AWG) | Nominal OD (MTW) | Circumference (π×OD) | Recommended B-427 Wrap | Recommended B-342 Sleeve | Thermal Ribbon |
|---|---|---|---|---|---|
| 24 AWG | 0.050" (1.27 mm) | 0.157" | M21-750-427 (1.00" H) | M21-094-C-342 (3/32" 3:1) | R4300 / R6600 |
| 22 AWG | 0.060" (1.52 mm) | 0.188" | M21-750-427 (1.00" H) | M21-094-C-342 (3/32" 3:1) | R4300 / R6600 |
| 20 AWG | 0.070" (1.78 mm) | 0.220" | M21-750-427 (1.00" H) | M21-094-C-342 (3/32" 3:1) | R4300 / R6600 |
| 18 AWG | 0.080" (2.03 mm) | 0.251" | M21-750-427 (1.00" H) | M21-094-C-342 (3/32" 3:1) | R4300 / R6600 |
| 16 AWG | 0.095" (2.41 mm) | 0.298" | M21-750-427 (1.00" H) | M21-125-C-342 (1/8" 3:1) | R4300 / R6600 |
| 14 AWG | 0.133" (3.38 mm) | 0.418" | M21-1000-427 (1.50" H) | M21-187-C-342 (3/16" 3:1) | R4300 / R6600 |
| 12 AWG | 0.155" (3.94 mm) | 0.487" | M21-1000-427 (1.50" H) | M21-187-C-342 (3/16" 3:1) | R4300 / R6600 |
| 10 AWG | 0.185" (4.70 mm) | 0.581" | M21-1000-427 (1.50" H) | M21-250-C-342 (1/4" 3:1) | R4300 / R6600 |
| 8 AWG | 0.250" (6.35 mm) | 0.785" | M21-1500-427 (2.50" H) | M21-375-C-342 (3/8" 3:1) | R4300 / R6600 |
| 6 AWG | 0.315" (8.00 mm) | 0.990" | M21-1500-427 (2.50" H) | M21-375-C-342 (3/8" 3:1) | R4300 / R6600 |
| 4 AWG | 0.380" (9.65 mm) | 1.194" | THT-27-427-1-2S (4.00" H) | M21-500-C-342 (1/2" 3:1) | R4300 / R6600 |
| 2 AWG | 0.450" (11.4 mm) | 1.414" | THT-27-427-1-2S (4.00" H) | M21-500-C-342 (1/2" 3:1) | R4300 / R6600 |
| 1/0 AWG | 0.530" (13.5 mm) | 1.665" | THT-27-427-1-2S (4.00" H) | B33-750-2-342 (3/4" 3:1) | R4300 / R6600 |
| 2/0 AWG | 0.580" (14.7 mm) | 1.822" | THT-27-427-1-2S (4.00" H) | B33-750-2-342 (3/4" 3:1) | R4300 / R6600 |
| 4/0 AWG | 0.700" (17.8 mm) | 2.199" | THT-27-427-1-2S (4.00" H) | B33-1000-2-342 (1.00" 3:1) | R4300 / R6600 |
| 250 MCM | 0.780" (19.8 mm) | 2.450" | THT-27-427-1-2S (4.00" H) | B33-1000-2-342 (1.00" 3:1) | R4300 / R6600 |
| 500 MCM | 1.050" (26.7 mm) | 3.299" | THT-133-427-0.5 (6.00" H) | B33-1500-2-342 (1.50" 3:1) | R4300 / R6600 |
| Cat6 | 0.240" (6.10 mm) | 0.754" | M21-1500-427 (2.50" H) | M21-375-C-342 (3/8" 3:1) | R4300 / R6600 |
Frequently Asked Questions (Wiring Schedules & Label Sizing)
How do you calculate label roll quantities for a control panel wire schedule?
To calculate total rolls: (1) Multiply the net conductor count by 2x for both-ends marking (source and destination terminals under UL 508A and NFPA 79). (2) Add a 10% shop waste margin for test prints and field rework. (3) Divide the gross required markers by the standard SKU package count per roll (e.g. 200, 275, or 2,500 pcs) and round UP to the nearest integer.
What size heat-shrink tubing do I need for 14 AWG MTW wire?
14 AWG Machine Tool Wire (MTW) has a nominal outer diameter of 0.133 in (3.38 mm). The optimal heat-shrink sleeve is 3/16 in (0.187 in / 4.75 mm) with a 3:1 shrink ratio (Brady B-342 / B-7642, e.g. M21-187-C-342). This slips easily over wire ferrules and shrinks down to 0.062 in (1.57 mm) for a permanent, tight grip.
How does the Self-Laminating Vinyl (B-427) wrap height formula work?
The minimum label height is calculated as: Total Label Height >= (pi * Wire Outer Diameter) + Printable Zone Height. For example, 10 AWG wire with a 0.185 in OD has a circumference of 0.581 in. Adding a 0.50 in white printable zone requires a minimum label height of 1.081 in, so standard 1.50 in height labels (M21-1000-427) are recommended to provide a full 360-degree clear protective tail overlap.
How much thermal transfer ribbon is required per roll of wire markers?
Standard Brady benchtop thermal ribbons (R4300 / R6600 / R6000HF) are 984 ft (300 meters) in length. A standard 2,500-label roll of 1.50-inch wire markers consumes approximately 313 linear feet of ribbon. Therefore, one 984-ft ribbon cartridge prints approximately 3 full high-volume rolls (7,800 labels) before replacement is required.
What mandatory safety labels are required for UL 508A industrial control panels?
Under UL 508A Section 52 and NFPA 70E, industrial control panels require: (1) ANSI Z535 High Voltage / Arc Flash Hazard warning decals on the exterior disconnect and interior sub-panel (Brady B-595), (2) Short Circuit Current Rating (SCCR) and panel serial nameplates (Brady B-483A / B-593), and (3) Protective Earth (PE) green grounding point identifiers.
