What is the best wire numbering scheme for control panels?

The one your documentation system generates automatically and your maintenance team can decode without a legend. Page-line numbering (wire 1042 = schematic page 10, line 42) is the strongest default for machine and panel work because the number itself navigates the technician to the right schematic location. Source-destination excels in interconnect and field wiring where knowing both ends beats knowing the drawing. Pure sequential unique numbers are simplest to assign and hardest to troubleshoot from — fine for small panels, punishing on large ones.

Should the wire number be the same at both ends of the wire?

Yes — one conductor, one identity, marked at both terminations, matching the documentation. That is the NFPA 79 expectation for machine wiring and the only version that survives decades of maintenance. Source-destination schemes still satisfy this: the full marker (e.g., PLC5:O2 / MCC1:T3) is identical at both ends; what changes end to end is only which half the reader walks toward.

How do I get wire numbers from CAD into the label printer without retyping?

Export the wire list from the ECAD package and transform it into the printer’s import format. AutoCAD Electrical and EPLAN both produce wire schedules; the free converters on this site turn those exports into print-ready marker files, which kills the transcription-error step that causes mystery wires — the wire numbered differently on copper than on the drawing.

Home GuidesWire Numbering Schemes

Panel Shop Practice

Wire Numbering Schemes: Pick One Philosophy and Never Mix Them

Every wire marker answers a future technician's question — the schemes differ only in which question. Page-line numbers answer "where is this on the print?"; source-destination answers "where does this go?"; sequential answers nothing without its list. All three work. What never works is mixing them in one enclosure, or the deadlier version: numbers on copper that drifted from numbers on drawings.

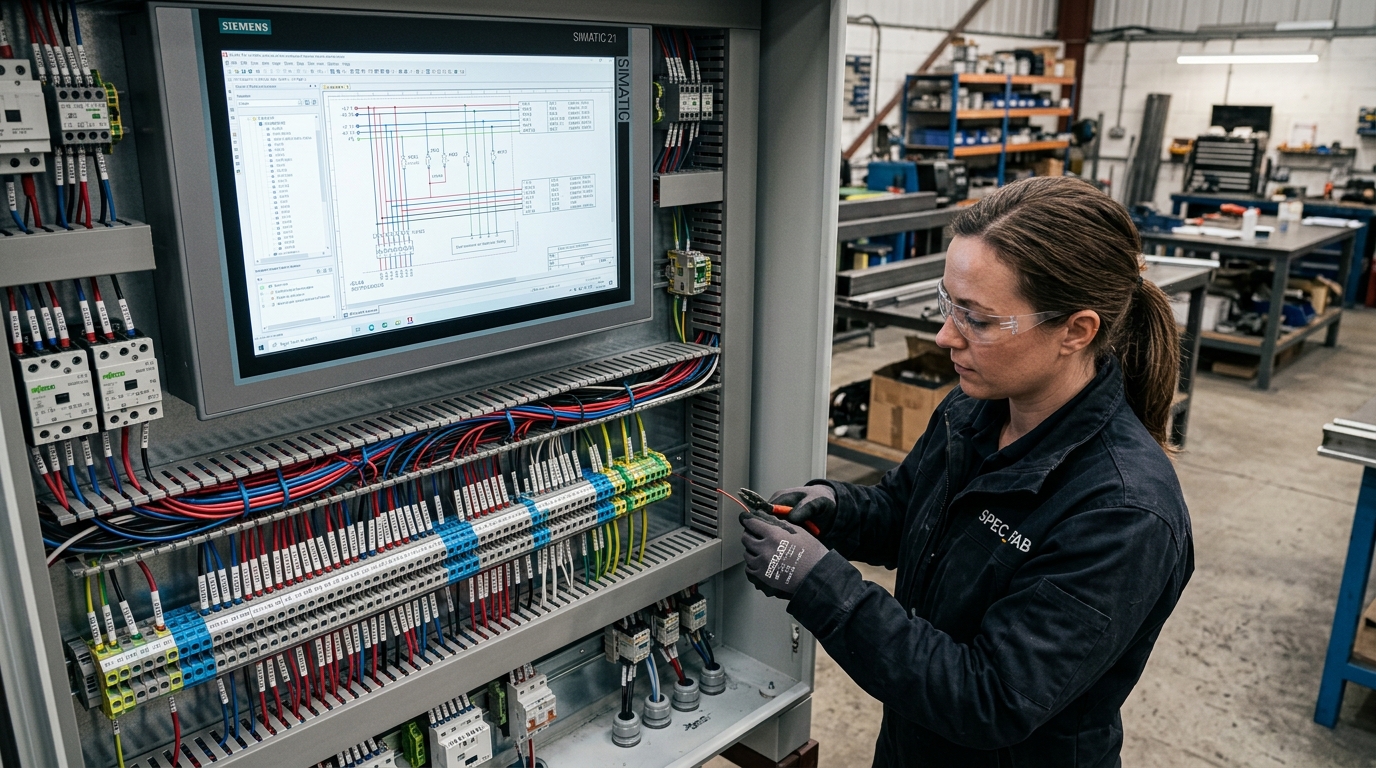

CAD wire schedule export converted to printed wire markers — the pipeline that keeps copper matching drawings

Figure 1: The pipeline that matters — the schematic generates the numbers, the numbers generate the markers, nothing gets retyped.ECAD → converter → printer

1. The Three Philosophies

Page-Line (schematic-derived)1042 = page 10, line 42

Strength

The number IS the schematic address — a technician reads the marker and opens the right page. Self-documenting at 2 a.m.

Cost

Requires disciplined drawing structure; schematic reorganizations renumber wires.

Natural Fit

Machine builders, OEM panels, anything NFPA 79-shaped

Source-DestinationPLC5:O2 / MCC1:T3

Strength

Both endpoints readable on the wire itself — tracing without any drawing at all.

Cost

Long legends on small markers; device renames orphan the wiring.

Natural Fit

Interconnect runs, field wiring, retrofits with weak documentation

Sequential UniqueW-0001, W-0002…

Strength

Trivial to assign, never collides, shortest legends.

Cost

The number means nothing without the wire list — troubleshooting is a two-document exercise.

Natural Fit

Small panels; shops whose ECAD manages the cross-reference flawlessly

2. The Rules That Keep Any Scheme Alive

One conductor, one number, both terminations — the NFPA 79 baseline from the machine wiring guide.
The schematic assigns numbers; humans never invent one at the bench. A field-invented number is a future mystery wire.
Print from the wire list, never from memory: export via the AutoCAD Electrical tool or EPLAN converter and feed the printer directly.
Marker technology follows the build: B-342 sleeves for pre-termination OEM work, B-427 self-lam for landed and retrofit wires — sized per the AWG chart.
As-built discipline: when a wire is added or moved at commissioning, the print changes the same day the marker does. The drift between copper and drawings is the real enemy, not the scheme choice.

Inheriting an undocumented panel?

Do not renumber incrementally — half-migrated schemes are worse than either endpoint. Ring out and document to a temporary source-destination map first, then renumber wholesale to your standard scheme in one planned outage, printing the full marker set in advance.
