Why do NFPA 704 and GHS numbers seem to contradict each other?

Because the scales run in opposite directions. NFPA 704 rates severity upward: 0 is minimal hazard, 4 is severe. GHS categories rate downward: Category 1 is the MOST hazardous, higher category numbers are less hazardous. So a flammable liquid can be NFPA flammability 4 and GHS Flammable Liquid Category 1 simultaneously — same chemical, same danger, numerically inverted. Training that does not call this out explicitly produces workers who misread one system or the other.

Did GHS replace the NFPA 704 diamond?

No. OSHA’s HazCom 2012 adoption of GHS governs container labels and SDS format; NFPA 704 remains the fire-code system for building and tank signage, required where the local fire code (IFC or NFPA 1) demands placarding of hazardous material occupancies. OSHA has confirmed the two systems coexist — GHS on the container, 704 on the building, room, or tank.

Who decides the numbers that go in a fire diamond?

The facility, based on the materials present — usually taken from SDS Section 16 or NFPA ratings published by the manufacturer, rated for the worst-case material in the area the sign covers. The fire marshal reviewing your permit is the practical authority; many jurisdictions want the rating to reflect aggregate quantities above IFC thresholds.

What size and material should an NFPA 704 sign be?

Big enough to read at response distance — jurisdictions commonly require 15-inch diamonds at building exteriors, smaller allowed at rooms and cabinets; confirm with the AHJ. The material question is an outdoor durability question: UV-stable vinyl (B-595 class) or reflective sheeting where night visibility is wanted, since the primary reader arrives on a truck with a spotlight.

Home GuidesNFPA 704 vs. GHS

Hazard Communication Systems

NFPA 704 vs. GHS: Two Systems, Opposite Number Scales

The fire diamond on the building and the pictogram label on the bottle are frequently treated as competing versions of the same idea. They are not — different readers, different placement, different law, and a numbering inversion that catches somebody in every training class: NFPA's 4 is the worst; GHS's Category 1 is the worst. Here is the clean split.

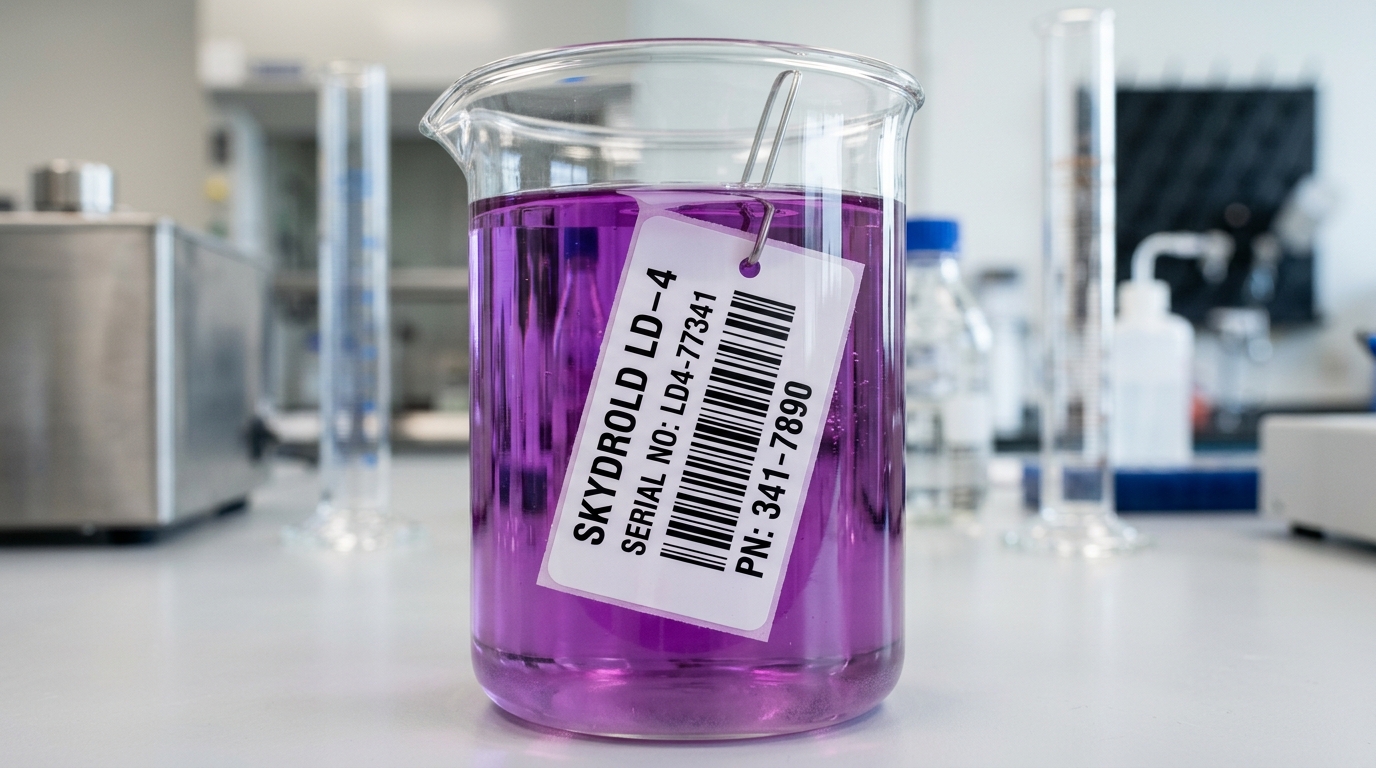

Aggressive chemical exposure testing of printed labels — the survivability standard for chemical area signage and container labels

Figure 1: Chemical exposure testing — the durability bar for the labels and signs both systems depend on.Resin print on polymer stock

1. The Clean Split

Parameter	NFPA 704 (Fire Diamond)	GHS / HazCom 2012
Primary reader	Emergency responders arriving at the building	The worker handling the container
What it marks	Buildings, rooms, tanks, storage areas	Every container, shipped or workplace
Number scale	0 → 4, severity INCREASES with the number	Category 1 is worst; higher category = LESS hazardous
Information design	Four quadrants: health (blue), flammability (red), instability (yellow), special (white)	Six elements: identifier, signal word, pictograms, H- and P-statements, supplier
Legal driver	Fire code adoption (IFC / NFPA 1) + local AHJ	OSHA 29 CFR 1910.1200 (HazCom 2012)
Worst-case logic	Rates the worst material in the covered area	Rates the specific chemical in the container

Train the inversion explicitly

Acetone: NFPA flammability 3, GHS Flammable Liquid Category 2. Diethyl ether: NFPA 4, GHS Category 1. Same substances, opposite numeric intuition. Put a side-by-side example like this in every HazCom refresher — it is the single highest-value slide in the deck.

2. Placement Map for a Typical Facility

Building exterior entrances & chemical storage rooms: NFPA 704 diamond, sized to AHJ requirements (15" is the common exterior spec), rated for the worst material inside — on UV-stable B-595 vinyl or reflective stock for night response.
Fixed tanks & bulk vessels: NFPA 704 plus contents identification; outdoor exposure makes this an outdoor durability problem first.
Every chemical container, original or secondary: GHS system — six elements on shipped containers, the workplace options covered in the GHS secondary container guide.
Gas cylinder cages, waste accumulation areas: Both systems commonly meet here: 704 on the enclosure, GHS on each container inside.
Safety cabinets (flammables, corrosives): Cabinet signage per fire code, GHS on the bottles within — the cabinet sign is not a substitute for container labels.

Both systems share one production reality: multi-color printing. An i5300-class sign printer produces the four-color diamond and red-frame GHS pictograms in-house on B-595 or B-7569 stock — one machine, both compliance systems.

The container half of this story

The GHS secondary container guide covers the six label elements, the two workplace labeling options, and the immediate-use exemption in working detail.
