Patch Panel & Rack Labeling That Survives Growth
Every network starts labeled and most end up archaeology. The difference is never effort — it is whether the identifier scheme was designed to absorb the next building, the next rack, and the next contractor. TIA-606-C's answer is a boring, hierarchical grammar plus two hard rules: machine-printed, and durable for the environment. Here is the scheme, worked from a real example.
1. The Identifier Grammar, Built Up One Level at a Time
The scheme is a postal address read right-to-left: port on panel, panel in rack, rack in room. Each level is boring on purpose — no mnemonic project names, no department codes that reorganize themselves every fiscal year:
| Level | Example Token | Rule That Keeps It Working |
|---|---|---|
| Space | 1A | Floor 1, telecom room A — every identifier starts with where |
| Rack / cabinet | 1A-03 | Third rack in room 1A; number racks left-to-right, once, permanently |
| Panel / RU position | 1A-03-42 | Panel at rack unit 42 — RU numbers do not move when equipment does |
| Port | 1A-03-42:24 | Port 24 on that panel; the full string is the link identifier |

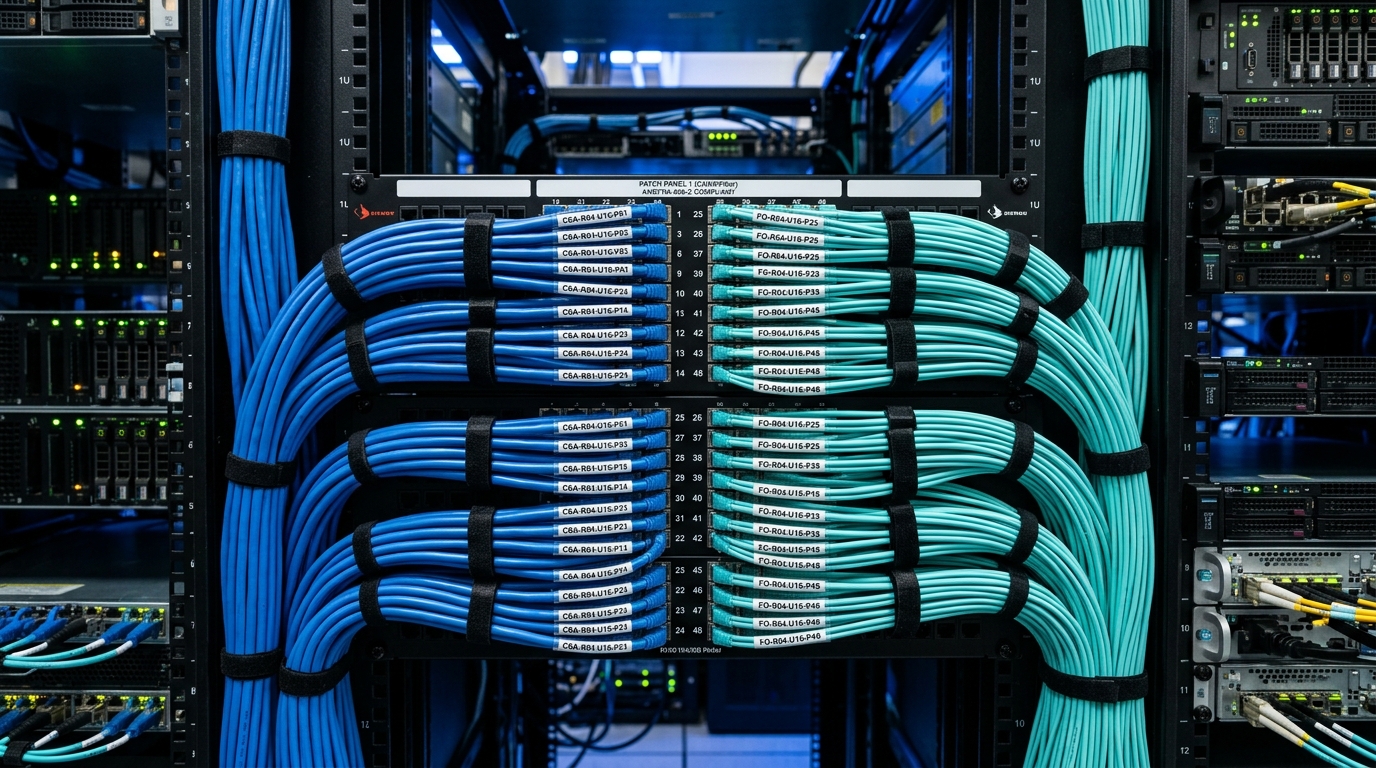

A horizontal link then reads 1A-03-42:24 at the panel and the same string on the cable at both ends, within about 300 mm of each termination. The faceplate at the work area carries it too — the wall jack is the other half of the link record.
2. The Nine Administration Colors
Color sorts a mixed frame visually before anyone reads a character. Applied via colored label fields, port icons, or cross-connect field backgrounds:
3. Materials That Survive the Rack
- Installed cable (both ends): B-427 self-laminating vinyl — the clear tail seals the legend against handling in cable managers; sized to jacket OD via the wire gauge tables (Cat5e/6/6a rows included).
- Panel ports & faceplates: B-499 nylon cloth — zero-memory conformable, matte, and legible at the small text sizes port strips force.
- Rack & cabinet IDs: B-595 vinyl — nameplates at eye level on the frame — rack numbers are permanent infrastructure, print them like it.
- The field printer: M610 — its 2.0" width and cartridge system are built around exactly this datacom work.
Records are half of TIA-606-C — every identifier printed on copper should exist in the administration database the same day. A perfect labeling job with a stale spreadsheet decays into the archaeology it was meant to prevent.
Full standard scope, durability classes & testing
The TIA-606-C standards hub covers the durability requirements, UL 969 tie-in, and the complete compliant material matrix behind this guide.
