How do I calculate what label size a wire needs?

Work from the insulation OD, not the conductor gauge: circumference = OD × π. A self-laminating label’s height must cover one full wrap for the printed zone plus at least 1.5 wraps of clear tail — in practice, wrap height ≈ 2.5 × circumference, then round up to the next stock size. A 12 AWG THHN at roughly 0.13 in insulation OD has a 0.41 in circumference, landing comfortably in a 1.0–1.25 in wrap height.

What heat-shrink sleeve size fits 12 AWG wire?

A 3/16 inch (0.187 in) supplied diameter 3:1 sleeve is the standard pick — it recovers down to roughly 1/16 inch, gripping the ~0.08–0.13 in insulation OD range of 12 AWG building wire securely. The selection rule: sleeve supplied diameter must exceed the largest thing it slides over (often the connector, not the wire), and recovered diameter must be smaller than the insulation OD.

What label size fits Cat6 network cable?

Cat6 UTP runs about 0.23 in OD — a 1.5 to 1.75 in self-laminating wrap height covers it; the thicker shielded Cat6A at about 0.30 in OD moves up to 2.0 in wraps. Fiber patch cords at 2–3 mm are the special case: a 1.0 in wrap works, but flag-style tags in conformable nylon cloth (B-499) are often more readable on cordage that thin.

Home GuidesWire Label Sizing Chart

Sizing Reference

Wire Label Size by AWG: Wrap Heights & Sleeve Diameters

Wire marker sizing fails in two directions: a wrap too short leaves the legend unsealed, a sleeve too big never grips. Both trace to the same root — sizing from conductor gauge instead of insulation OD. This chart gives the field answer for the common gauges and datacom cables; the math section handles everything else, from tray cable to hydraulic hose.

Wire gauge to label size calculation — matching self-laminating wrap height and heat-shrink recovery diameter to insulation OD

Figure 1: Size from the insulation OD — the conductor gauge is two insulation systems away from the truth.Wrap = f(circumference)

1. The Chart: 18 AWG to 4/0, Plus Datacom

Wrap heights are for B-427 self-laminating vinyl; sleeve diameters are supplied (pre-recovery) sizes for B-342 PermaSleeve 3:1 tubing. Nominal OD is bare-conductor; insulation systems vary, which is what the ranges absorb.

Gauge / Cable	Nominal OD	B-427 Wrap Height	B-342 Sleeve Ø	Typical Service
18 AWG	0.040″	0.75″	3/32″ (3:1)	Control, sensor & instrument wiring
16 AWG	0.051″	0.75–1.0″	1/8″ (3:1)	Industrial control & relay cabinets
14 AWG	0.064″	1.0″	1/8–3/16″ (3:1)	Branch circuit power, 15 A class
12 AWG	0.081″	1.0–1.25″	3/16″ (3:1)	Commercial power & machine tools, 20 A
10 AWG	0.102″	1.25–1.5″	1/4″ (3:1)	Feeders & HVAC, 30 A class
8 AWG	0.128″	1.5″	3/8″ (3:1)	Heavy feeders & VFD wiring
6 AWG	0.162″	1.75–2.0″	3/8–1/2″ (3:1)	Heavy power & grounding, 65 A
4 AWG	0.204″	2.0–2.5″	1/2″ (3:1)	Main feeders, 85 A
2 AWG	0.258″	2.5–3.0″	3/4″ (3:1)	Switchboard & transformer feeders
1/0 AWG	0.289″	3.0″	3/4–1″ (3:1)	Substation & distribution, 150 A
2/0 AWG	0.325″	3.5″	1.0″ (3:1)	Commercial service drops, 175 A
4/0 AWG	0.460″	4.0″	1.5″ (3:1)	Heavy commercial mains, 230 A
Cat5e	0.20″	1.5″	3/8″ (3:1)	4-pair UTP data
Cat6	0.23″	1.5–1.75″	3/8″ (3:1)	Gigabit Ethernet (internal spline)
Cat6A	0.30″	2.0″	1/2″ (3:1)	Shielded 10GBASE-T
RG6 coax	0.275″	1.75–2.0″	1/2″ (3:1)	75Ω broadband / RF
Fiber patch	0.118″	1.0″ or flag tag	3/16″ (3:1)	2–3 mm optical patch cords

2. The Math for Everything Not on the Chart

Self-laminating wraps

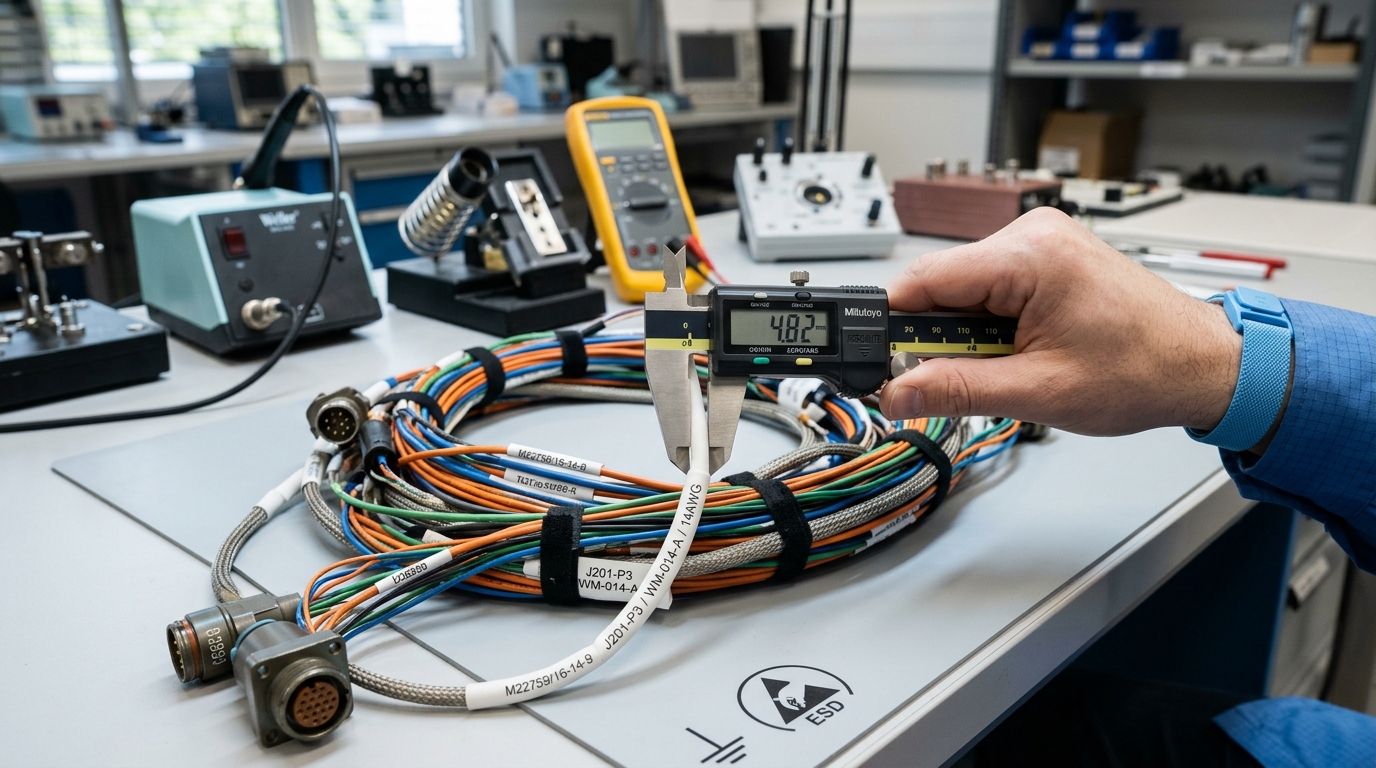

wrap height ≈ 2.5 × (OD × π), rounded up to stock size. That buys one full turn under the printed zone plus 1.5+ turns of clear tail sealing the legend — the 360°-plus-overlap rule that makes self-lam waterproof. Measure the OD with calipers on the insulation, jacket, or loom, whichever the label actually wraps.

Heat-shrink sleeves

Two constraints, both mandatory: supplied Ø > largest pass-over (frequently the terminal or connector, not the wire) and recovered Ø < insulation OD. A 3:1 ratio sleeve recovers to one-third its supplied diameter, which is why 3:1 covers connector-first installs that 2:1 cannot — the full ratio physics are in the shrink ratio guide.

The classic sizing mistake

Ordering by conductor gauge alone. A 12 AWG THHN, a 12 AWG MTW, and a 12 AWG welding lead have meaningfully different insulation ODs — and on multi-conductor cable, the jacket OD is the only number that matters. When a spec sheet says "fits 12 AWG," read the OD range it actually lists.

Interactive version, with SKUs

The AWG Wire Gauge Calculator resolves any gauge or cable type to exact B-427 wrap SKUs and B-342 sleeve SKUs, with per-gauge detail pages.

Launch the AWG Calculator
