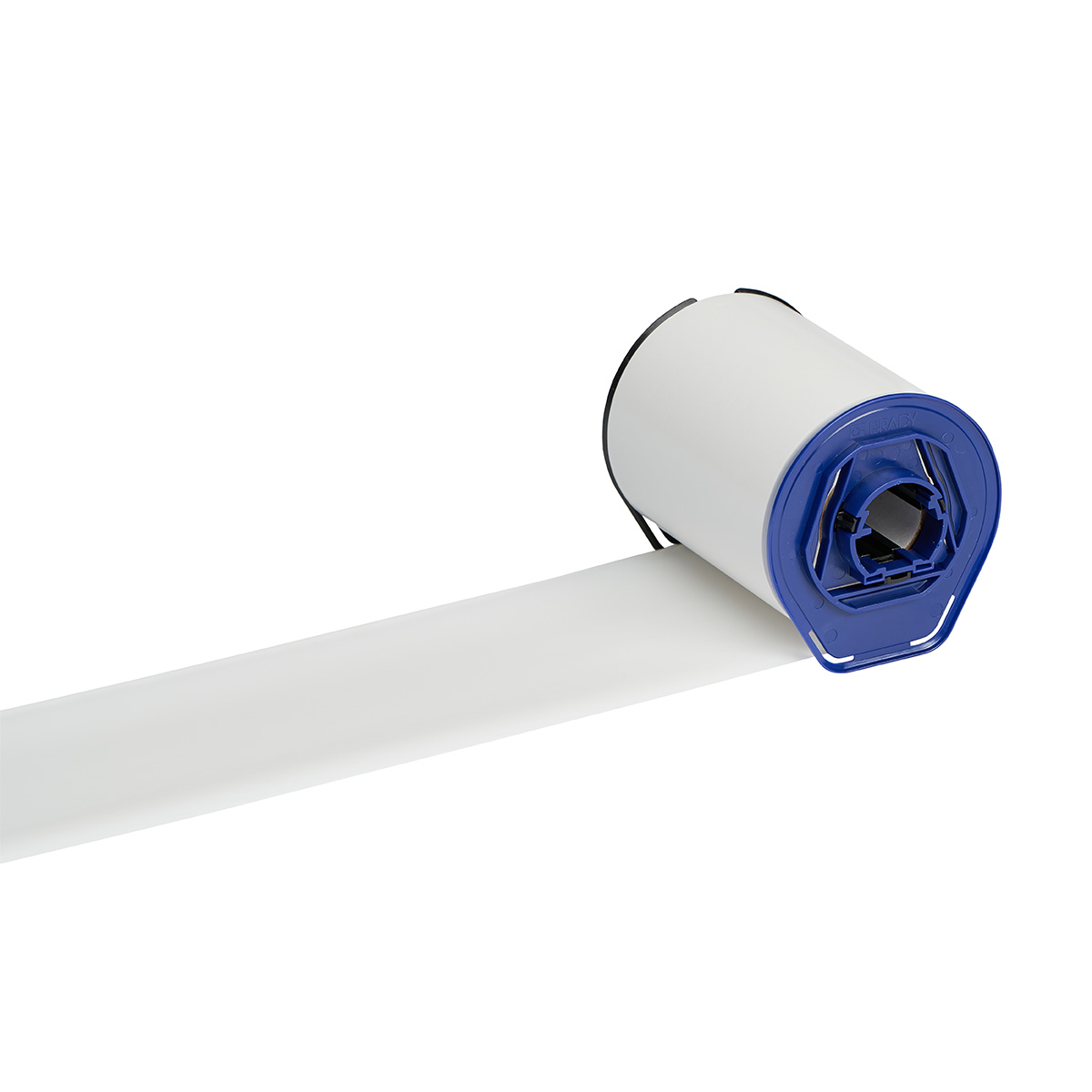

Brady I75-R6702-WT i75 Series R6700 Ribbon for the i7500 Label Printer
Formulated from Brady R6700 Industrial Technical Substrate with permanent acrylic adhesive. Engineered for 3" W × 3" H industrial labeling applications.
Engineered Technical Features
- i75-series ribbon is self-centering with ink-side always correctly facing the label
- One-color ribbon for printing a single color onto a label
- R6700 Series White Wax/Resin formulation offers excellent chemical, scratch and smudge resistance when printed on the appropriate label material from Brady®
- Recommended for printing on dark-colored heat-shrinkable tubing materials, such as black B-342 and B-344 PermaSleeve® wire markers from Brady®
- Combine Brady label materials with their recommended ribbon series for superior legend performance
Compatible Brady Printers & Thermal Transfer Ribbon Pairing
Verified hardware compatibility and recommended ribbon formulations for I75-R6702-WT.
Full Technical & Material Specifications (ASTM / UL Testing)
| Material Formulation: | Brady R6700 (R6700 Industrial Material) | Continuous Temp Range: | -40°F to 250°F (-40°C to 121°C) |
| Substrate Polymer Chemistry: | Industrial Technical Substrate | Total Material Thickness: | 0.004 in (0.102 mm) |
| Adhesive Formulation: | Permanent Acrylic | ASTM D1000 Stainless Steel Peel: | 50+ oz/in |
| ASTM D1000 Polypropylene Peel: | 35+ oz/in | ASTM D1000 Powder Coat Peel: | 40+ oz/in |
| UL 969 Recognition: | UL 969 (File MH17154 / MH10939) | CSA C22.2 Acceptance: | CSA C22.2 No. 0.15 |
| RoHS / Halogen Compliance: | RoHS Compliant • Standard Formulation | Surface Finish: | Gloss / Matte |
Related Sibling SKUs & Alternate Formats
Engineering & Specifier FAQs for I75-R6702-WT
Can I print Brady I75-R6702-WT on a standard portable printer?
I75-R6702-WT is a bulk roll engineered for benchtop printers (such as the i3300, i5100, i7100, and PR Plus series) with 3-inch core diameter holders.
Is Brady I75-R6702-WT recognized under UL 969 for electrical panel rating plates?
Yes, I75-R6702-WT is manufactured from Brady R6700, which holds UL 969 component recognition under File MH17154 / MH10939 (PGJI2) when printed with approved thermal transfer ribbons (such as Series R6000HF).
How do I generate an official engineering submittal package for I75-R6702-WT?
Click the "1-Click Engineering Submittal PDF Package" button above to instantly generate a contractor-stamped specification packet with ASTM D1000 adhesion test data, continuous operating temperatures, and UL compliance certificates ready for architectural submittals.
