Insulation Sleeving, Electrical, Heat Shrinkable (SAE-AMS-DTL-23053)

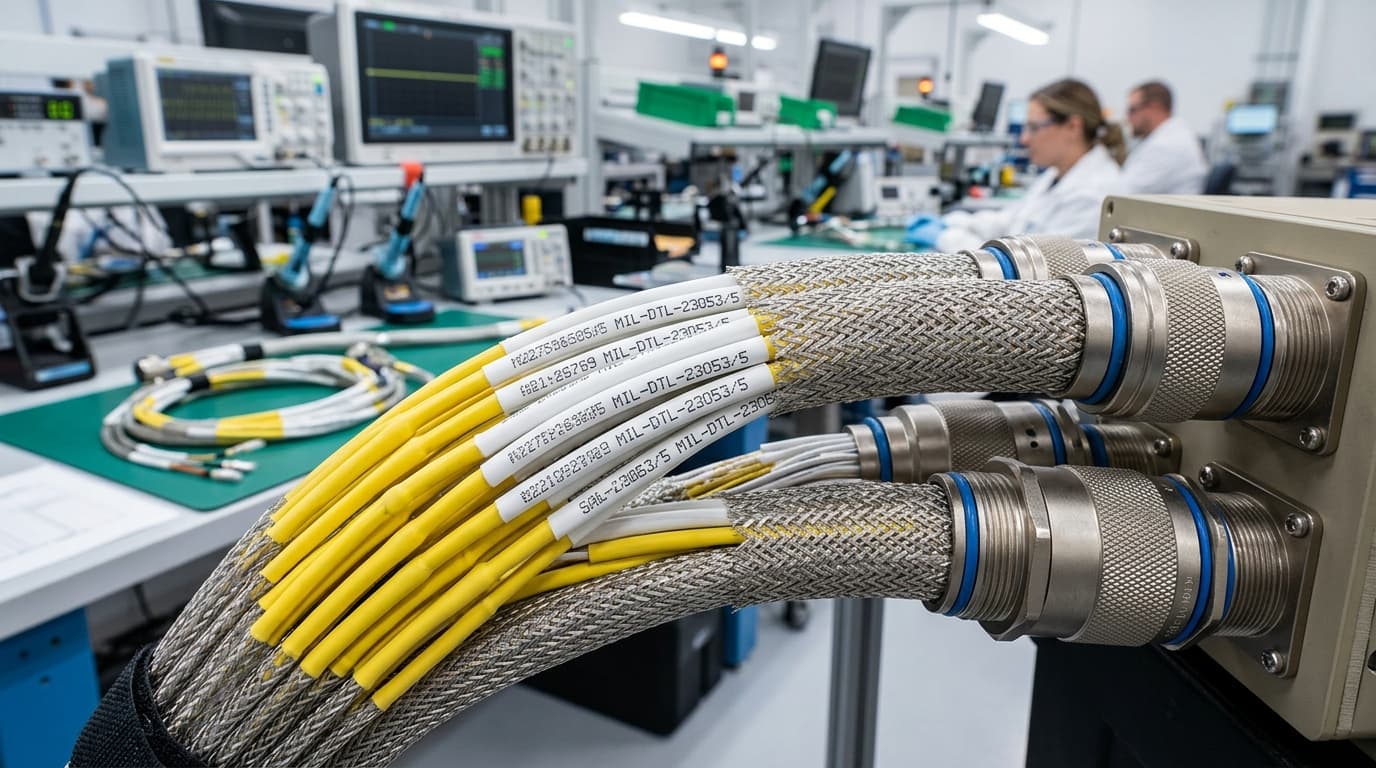

The military performance specification for cross-linked polyolefin, fluoropolymer, and elastomeric heat-shrinkable electrical insulation sleeving used for wire insulation, strain relief, and identification marking in military and aerospace applications.
Specifies physical properties including tensile strength (>1500 psi), ultimate elongation (>200%), dielectric breakdown voltage (>600V), flammability (VW-1 / Method B self-extinguishing within 60 seconds), low temperature flexibility (-55°C without cracking), and longitudinal shrinkage tolerances (±5%).
MIL-DTL-23053 (SAE-AMS-DTL-23053) Class 1 vs. Class 3
Class 1 covers standard flame-retardant polyolefin tubing for general aerospace wiring harnesses (-55°C to 135°C). Class 3 covers thin-wall, highly flexible polyolefin tubing optimized for weight-sensitive avionics bundles.
MIL-DTL-23053 Pre-Audit Inspector Verification Checklist
Review these 5 critical inspection points before the Authority Having Jurisdiction (AHJ) or field auditor inspects the installation:
Specification Cross-Reference Verification
Confirm sleeves comply with SAE-AMS-DTL-23053/5 (formerly MIL-DTL-23053/5) Class 1 or Class 3 for irradiated polyolefin.
3:1 Expansion & Recovery Dimensions
Verify expanded inner diameter (ID) meets nominal size and recovers down to ≤33.3% of expanded diameter upon heating to 121°C–150°C.
Fluid Immersion Resistance
Confirm sleeve passes 24-hour immersion in MIL-L-7808 turbine oil, MIL-H-5606 hydraulic fluid, and JP-8 jet fuel with tensile strength retention >1000 psi.
Low Temperature Flexibility (-55°C)
Verify sleeves do not crack or shatter after 4 hours at -55°C when bent around a standard test mandrel.
Dielectric Breakdown Voltage
Verify minimum dielectric strength ≥500 Volts/mil (19.7 kV/mm) per ASTM D876.
MIL-DTL-23053 Certified Material Substrate Adhesion Matrix (ASTM D1000)
| Material Code | Stainless Steel (HSE) | Textured Powder Coat (28 dynes) | Cast Aluminum | Polypropylene (LSE) | Engineering Verdict |
|---|---|---|---|---|---|
| Brady B-342 | Recovered | N/A | N/A | N/A | PermaSleeve 3:1 meeting SAE-AMS-DTL-23053/5 Class 1/3 |
| Brady B-345 | Recovered | N/A | N/A | N/A | PVDF sleeve meeting SAE-AMS-DTL-23053/18 Class 1 |
| Brady B-7642 | Recovered | N/A | N/A | N/A | Zero-halogen polyolefin meeting transit flame requirements |
Key MIL-DTL-23053 Regulatory Clauses & Mandatory Specifications
| Clause / Section | Regulatory Requirement | Technical Compliance Mandate | Certified B-Numbers |
|---|---|---|---|
| Class 1 | General Aerospace Polyolefin Tubing | Standard flame-retardant irradiated cross-linked polyolefin operating from -55°C to +135°C. | |
| Class 3 | Thin-Wall Weight-Sensitive Avionics | Lightweight, thin-wall flexible polyolefin engineered for high-density aircraft wiring harnesses. | |
| Section 4.3 | 3:1 Shrink Ratio & Recovery Dimensions | Expanded inner diameter must recover to ≤33.3% of expanded dimension upon heating to 121°C–150°C. | |
| Section 4.4 | Fluid & Fuel Immersion Retention | Must retain >1000 psi tensile strength after 24-hour immersion in JP-8 jet fuel and MIL-H-5606 hydraulic oil. |
Certified Brady Materials & Mandated Ribbon Formulations
Brady Series R6600 Pure Resin Ribbon
Brady Series R6000HF Pure Resin Ribbon
Orderable Commercial SKUs & Distributor Part Numbers
Build & Size Your MIL-DTL-23053 Conductor Schedule
Import AutoCAD Electrical wire from/to reports, apply 10% scrap safety factors, and calculate exact roll quantities with 1 click.
MIL-DTL-23053 Frequently Asked Compliance Questions
What is the difference between MIL-DTL-23053/5 Class 1 and Class 3?
Class 1 is standard-wall, flame-retardant polyolefin heat-shrink tubing suitable for general aerospace and commercial wiring. Class 3 is thin-wall, highly flexible polyolefin tubing designed specifically for weight-critical avionics bundles and compact aircraft electronic packages.
What does a 3:1 heat-shrink ratio mean for wire sizing?
A 3:1 ratio means the heat-shrink sleeve expands to 3 times its fully recovered (shrunk) inner diameter. This allows the sleeve to easily slide over bulky crimped pins, terminals, and splices, then recover tightly down around the wire conductor when heat is applied.
What temperature is required to shrink Brady B-342 PermaSleeve?
Brady B-342 PermaSleeve begins shrinking at 90°C (194°F) and achieves full 3:1 recovery at 120°C to 150°C (248°F to 302°F) using an industrial heat gun or infrared oven.
Does MIL-DTL-23053 heat shrink resist military aircraft fuels?
Yes. Brady B-342 meets the fluid immersion requirements of SAE-AMS-DTL-23053/5, maintaining high insulation resistance and tensile strength after 24-hour immersion in JP-8 jet fuel, MIL-H-5606 hydraulic fluid, and lubricating oils.
