Wire & Cable Engineering Battle

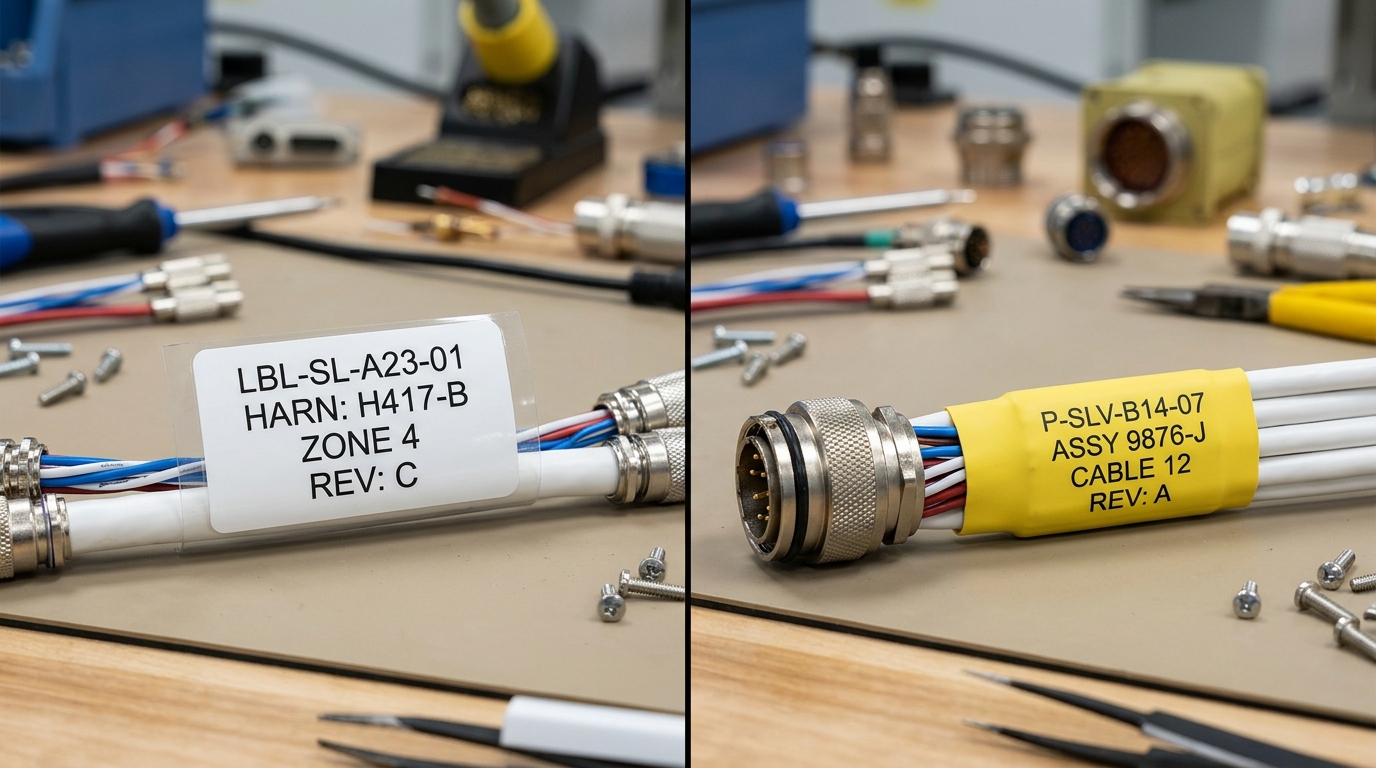

Self-Laminating Vinyl (B-427) vs. Heat-Shrink Sleeves (B-342)
Choosing between wrap-around self-laminating vinyl and heat-shrink tubing is the single most frequent specification decision in electrical panel building, aerospace harness assembly, and telecommunication infrastructure. Compare physical properties, thermal envelopes, application speed, and cost.
Sponsored Industrial Wire Identification Solutions
Industrial Label Printers & Materials
Relevant Technical Equipment & Consumables [Ad Slot guide-top]
1. Technical Specification Comparison Matrix
Detailed side-by-side engineering evaluation of Brady B-427 vs. Brady B-342 PermaSleeve®:
| Engineering Parameter | Brady B-427 (Self-Laminating Vinyl) | Brady B-342 (PermaSleeve 3:1 Polyolefin) | Verdict |
|---|---|---|---|
| Installation Timing | Pre- or Post-Termination (Anytime) | Pre-Termination ONLY (Must slide over bare wire end before crimping/soldering) | B-427 for retrofits; B-342 for OEM harness builds |
| Physical Fit & Retention | Adhesive wrap-around with 0.25"+ clear protective overlaminate tail | 3:1 Heat-shrink recovery grips insulation permanently without adhesive | B-342 (Zero adhesive creep over 20+ years) |
| Operating Temperature Limits | -40°C to +70°C (-40°F to 158°F) | -55°C to +135°C (-67°F to 275°F) | B-342 (High-temperature aerospace & engine compartments) |
| Dielectric Insulation | Moderate (Standard vinyl film, not rated for primary dielectric) | High (MIL-I-23053/5 Class 1 rated electrical insulation barrier) | B-342 |
| Military & Aerospace Compliance | UL 969 recognized (File MH64936) | SAE-AS-81531, MIL-STD-202G Method 215K, SAE-AMS-DTL-23053/5 | B-342 (Defense & aerospace specification standard) |
| Application Speed | 10–15 seconds per wire (Manual wrap around wire circumference) | 5 seconds slide-on + 3 seconds heat gun recovery | Tie (B-342 faster in batch harness production) |
| Normalized Unit Cost | Starting at $0.08 – $0.25 per label | Starting at $0.18 – $0.45 per sleeve | B-427 (More economical for high-volume commercial panel wiring) |
| Recommended Thermal Ribbon | Series R4300 Wax/Resin | Series R4300 (Standard) or Series R6600 (High-Solvent/Diesel) | Compatible with identical printers (M210, BMP61, i5100, i7100) |
2. Selection Decision Checklist: Which Should You Specify?
Specify Brady B-427 if:
- The cable is already terminated or connected into a terminal block / switchgear.
- Lowest cost per point is critical across thousands of commercial panel terminations.
- Operating environment stays under 70°C (158°F), such as HVAC controls, IT server racks, and indoor automation.
- High chemical abrasion protection is needed via the clear overlaminate tail.
Specify Brady B-342 if:
- Building OEM wire harnesses where sleeves can be slid on prior to connector pin crimping.
- Operating temperatures exceed 70°C up to 135°C (275°F) in engine bays or heavy power systems.
- Military or aerospace specs mandate SAE-AS-81531 mark permanence and MIL-STD-202 solvent testing.
- Zero adhesive reliance is required to guarantee no sticky residue or flagging over decades.
Need exact label or sleeve dimensions for your wire gauge?
Use our interactive AWG Wire Gauge Calculator to instantly calculate label wrap heights and 3:1 heat-shrink recovery diameters for 24 AWG up to 4/0 AWG.
