Industrial Control Panels (NFPA 70 Nameplate Ratings & Fault Current Markings)
Covers the installation and mandatory marking requirements for industrial control panels (ICPs) operating at 1000V or less. Details the mandatory exterior electrical rating nameplate parameters and available fault current field markings required for local inspector approval.
All nameplates and marking tags must be permanent, durable, and firmly affixed to the exterior enclosure door or adjacent wall per NEC 110.21. Handwritten tape or non-permanent markings are strictly rejected by the Authority Having Jurisdiction (AHJ).
NEC 409 vs. NEC 430 Motor Control Rules
NEC Article 409 specifically governs industrial control panels, requiring a comprehensive single rating plate with overall enclosure Short Circuit Current Rating (SCCR). NEC Article 430 governs motors, motor branch circuits, and individual motor disconnects that feed into or originate from the Article 409 panel.
NEC Article 409 Pre-Audit Inspector Verification Checklist
Review these 5 critical inspection points before the Authority Having Jurisdiction (AHJ) or field auditor inspects the installation:

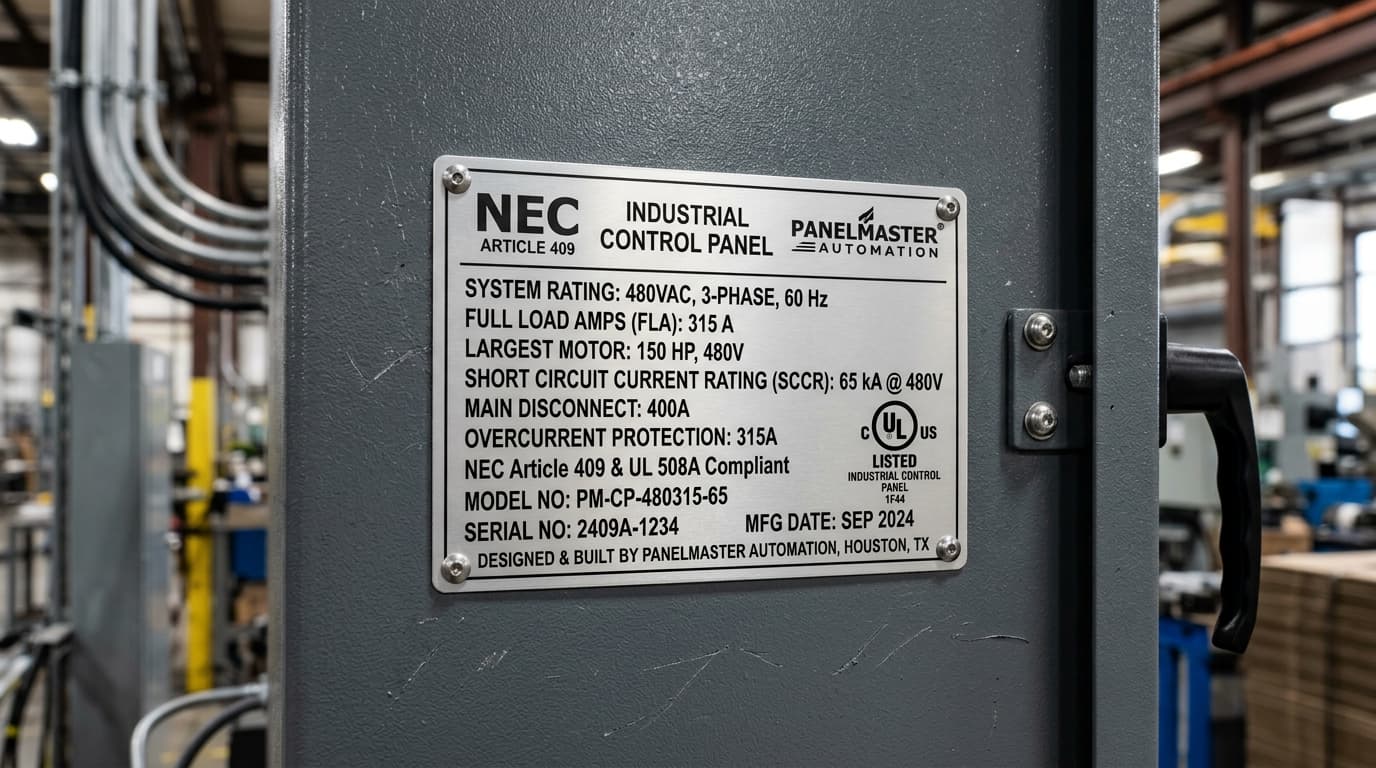

Clause 409.110(1) Manufacturer Nameplate
Verify manufacturer's legal name, trademark, or other descriptive marking identifying the panel builder is permanently affixed to the exterior.
Clause 409.110(2) Supply Electrical Ratings
Confirm supply voltage, number of phases, frequency, and full-load current (FLA) for all input power feeds.
Clause 409.110(3) Largest Motor Load
Check that the full-load current and horsepower of the largest motor in the system is explicitly declared on the rating plate.
Clause 409.110(4) Short-Circuit Current Rating (SCCR)
Verify the overall SCCR value (in kA) is marked based on the lowest rated component in the power circuit or calculated per UL 508A Supplement SB.
Clause 409.110(5) Enclosure Environmental Type
Ensure enclosure environmental type rating (NEMA 1, 3R, 4, 4X, or 12) is permanently marked (Brady B-428 metallized silver or B-593 foam plate).
NEC Article 409 Certified Material Substrate Adhesion Matrix (ASTM D1000)
| Material Code | Stainless Steel (HSE) | Textured Powder Coat (28 dynes) | Cast Aluminum | Polypropylene (LSE) | Engineering Verdict |
|---|---|---|---|---|---|
| Brady B-428 | 65 oz/in | 48 oz/in | 60 oz/in | 30 oz/in | Matte silver metallized polyester replicating stamped metal |
| Brady B-593 | 95 oz/in | 90 oz/in | 90 oz/in | 75 oz/in | Foam-backed legend plate preserving NEMA 4X ingress seal |
| Brady B-483A | 130 oz/in | 115 oz/in | 120 oz/in | 95 oz/in | Ultra-high tack polyester for textured exterior enclosures |
Key NEC Article 409 Regulatory Clauses & Mandatory Specifications
| Clause / Section | Regulatory Requirement | Technical Compliance Mandate | Certified B-Numbers |
|---|---|---|---|
| 409.110(1) | Manufacturer & Identification | Panel builder's legal name, trademark, or distinctive identifier must be marked on the exterior enclosure. | |
| 409.110(2) | Electrical Power Ratings | Supply voltage, phase, frequency, full-load current (FLA), and rating of largest motor load. | |
| 409.110(4) | Short-Circuit Current Rating (SCCR) | Mandatory marking of overall enclosure SCCR based on weakest component or approved calculation. | |
| 409.110(5) | Environmental Enclosure Type | Enclosure NEMA or IP rating (NEMA 1, 3R, 4, 4X, 12) marked to preserve environmental ratings. |
Certified Brady Materials & Mandated Ribbon Formulations
Brady Series R4300 Wax/Resin Ribbon
Brady Series R6000HF Pure Resin Ribbon
Brady Series R6000HF Pure Resin Ribbon
Orderable Commercial SKUs & Distributor Part Numbers
Build & Size Your NEC Article 409 Conductor Schedule
Import AutoCAD Electrical wire from/to reports, apply 10% scrap safety factors, and calculate exact roll quantities with 1 click.
NEC Article 409 Frequently Asked Compliance Questions
What is required on an NEC Article 409 control panel rating plate?
Under NEC 409.110, an industrial control panel nameplate must include: (1) Manufacturer's name or trademark; (2) Supply voltage, phase, frequency, and Full Load Amps (FLA); (3) Largest motor horsepower/amperage; (4) Short Circuit Current Rating (SCCR in kA); (5) Electrical schematic number; and (6) Enclosure environmental NEMA/IP type rating.
Why is Short Circuit Current Rating (SCCR) mandatory under NEC 409?
SCCR indicates the maximum symmetrical fault current an electrical panel can safely withstand without violent rupture, electrical arcing, or fire. The panel's marked SCCR must equal or exceed the available fault current at the installation site per NEC 409.22.
Can I replace engraved phenolic plastic nameplates with Brady B-593?
Yes! Brady B-593 Raised Panel foam-backed polyester is designed specifically to replace engraved plastic plates. It costs 85% less, prints on-demand in seconds on thermal transfer printers, and uses a 130 oz/in aggressive adhesive that does not require drilling holes in NEMA 4/4X enclosures.
What adhesive is required for NEC 409 rating plates on powder-coated steel?
Use Brady B-483A ultra-high-tack polyester (130 oz/in peel adhesion) or B-593 Raised Panel plates. Standard commercial labels lift off textured industrial powder coatings, resulting in failed electrical inspections.
