Standard for Industrial Control Panels (Marking, Rating Plates & Wire Identification)
Specifies mandatory factory and field labeling requirements for industrial control panels (ICPs) operating up to 1000V. Governs internal power and control conductor identification, component reference designators, exterior electrical rating plates, Short-Circuit Current Ratings (SCCR), and field wiring terminal torque ratings required to achieve a UL 508A Listing mark.
All labels, rating plates, and wire sleeves must meet UL 969 standards for permanence, adhesive cure, and oil/solvent resistance under UL Category Code PGDQ2 (finished labels) or PGJI2 (thermal transfer printable systems). Internal wire markers must retain legibility and position without slippage under continuous operating temperatures up to 90°C (MTW/THHN wire). Exterior nameplates must survive environmental exposure corresponding to the enclosure type rating (NEMA Type 1, 3R, 4, 4X, 12).
UL 508A vs. NFPA 79 Scope Differentiation
UL 508A governs the design and construction of the electrical control panel enclosure itself (SCCR calculation, internal component spacing, wire duct sizing, and exterior nameplates). NFPA 79 covers the electrical standard for the entire industrial machine, including external field wiring, operator control stations, and emergency stop circuits wired into the UL 508A panel.
UL 508A Pre-Audit Inspector Verification Checklist
Review these 5 critical inspection points before the Authority Having Jurisdiction (AHJ) or field auditor inspects the installation:
Clause 52.1 SCCR Nameplate Verification
Confirm main exterior nameplate contains manufacturer name, supply voltage, full load current (FLA), largest motor rating, and calculated Short Circuit Current Rating (SCCR in kA). Must be UL 969 recognized for textured powder coat (Brady B-483A or B-593).
Clause 53.1 Arc Flash & High Voltage Warnings
Verify ANSI Z535 compliant DANGER/WARNING decals are present on the exterior enclosure door and main disconnect operating handle operating at >50V AC/DC (Brady B-595).
Clause 54.1 Internal Conductor Identification

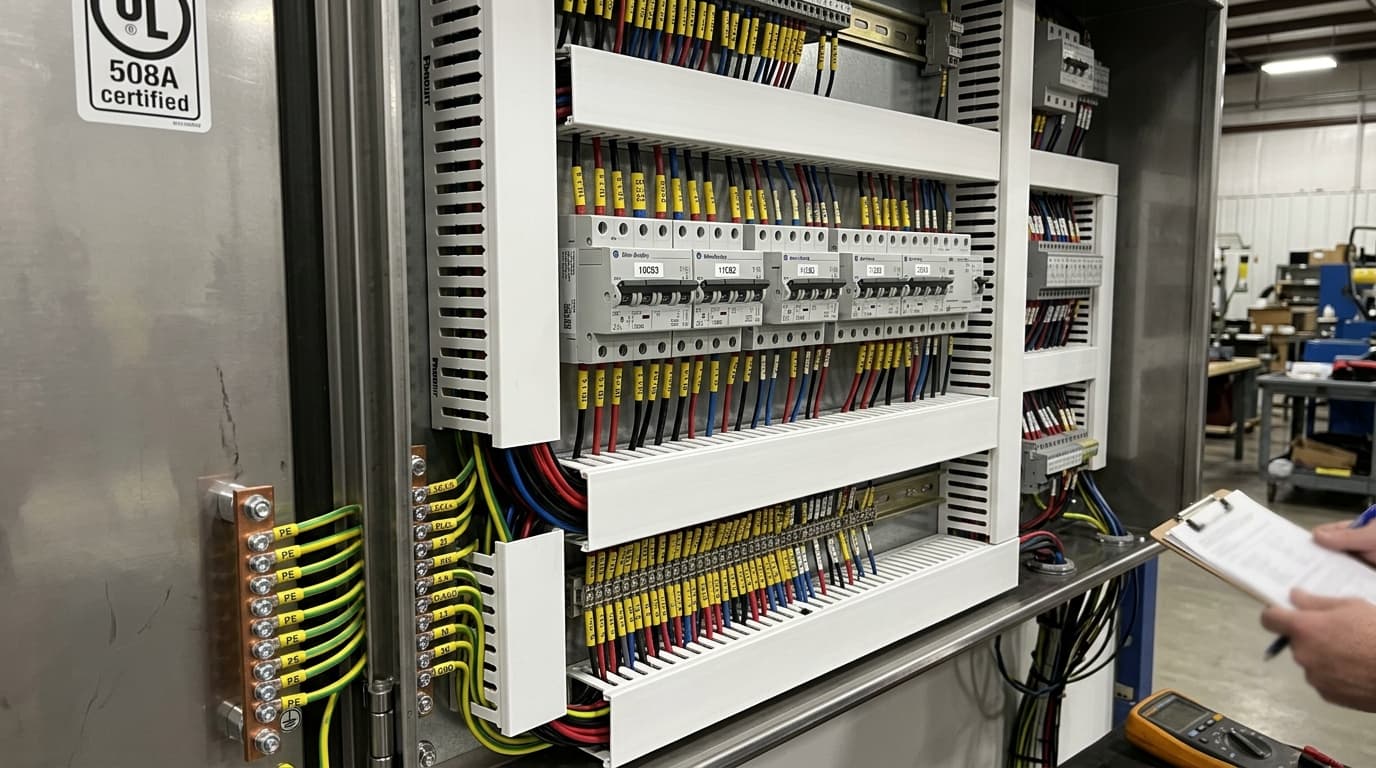

Check that all power, control, and analog wiring is legibly marked at both termination points matching schematic circuit wire tags using heat-shrink sleeves (B-342) or self-laminating vinyl wraps (B-427).
Clause 60.1 Grounding & Protective Conductor (PE)
Verify incoming ground busbar and enclosure bonding studs are permanently marked with green/yellow PE ground symbols (IEC 60417-5019).
Clause 66.5.2 Conductor Insulation Color Rules
Verify ungrounded AC power conductors are Black, AC control circuits are Red, DC control circuits are Blue, and grounded AC neutral conductors are White or Natural Gray.
UL 508A Certified Material Substrate Adhesion Matrix (ASTM D1000)
| Material Code | Stainless Steel (HSE) | Textured Powder Coat (28 dynes) | Cast Aluminum | Polypropylene (LSE) | Engineering Verdict |
|---|---|---|---|---|---|
| Brady B-483A | 130 oz/in | 115 oz/in | 120 oz/in | 95 oz/in | Optimal for textured powder-coated panel doors |
| Brady B-593 | 95 oz/in | 90 oz/in | 90 oz/in | 75 oz/in | Drop-in 0.025" foam replacement for engraved phenolic |
| Brady B-427 | 38 oz/in | N/A (Wrap) | N/A | N/A | 360° self-laminating clear tail wraps around conductor |
| Brady B-342 | Recovered | N/A | N/A | N/A | 3:1 polyolefin sleeve recovers tightly over insulation |
Key UL 508A Regulatory Clauses & Mandatory Specifications
| Clause / Section | Regulatory Requirement | Technical Compliance Mandate | Certified B-Numbers |
|---|---|---|---|
| Clause 52.1 | Internal Wiring Identification | All internal power, control, and instrumentation conductors must be uniquely identified at every termination point with permanent, machine-printed wire markers corresponding to the electrical schematics. Color coding must comply with Clause 66.5.2 (Black = AC Power, Red = AC Control, Blue = DC+ Un-grounded, White/Blue = DC Grounded Common, Green/Yellow = Protective Ground). | |
| Clause 53.1 | Component Reference Designators | Every internal component (relays, contactors, terminal blocks, PLCs, fuses, circuit breakers) must be labeled with an adjacent, permanent reference designator matching the bill of materials and wiring diagrams. | |
| Clause 54.1 & 55.1 | Electrical Rating Nameplate & SCCR | A permanent exterior nameplate must display manufacturer name, complete electrical input ratings (Voltage, Phases, Frequency, Total Full Load Amps, Largest Motor FLA), Short-Circuit Current Rating (SCCR), enclosure environmental type rating, and wiring diagram reference number. | |
| Clause 60.1 | Field Wiring Terminal & Torque Markings | All field terminal blocks and disconnect lugs must be clearly marked with conductor material ('Use Copper Conductors Only' or 'CU Only'), temperature rating (60°C, 75°C, or 90°C), and tightening torque values (lb-in or N-m). |
Certified Brady Materials & Mandated Ribbon Formulations
Brady Series R6600 Pure Resin Ribbon
Brady Series R4300 Wax/Resin Ribbon
Brady Series R6000HF Pure Resin Ribbon
Brady Series R4300 Wax/Resin Ribbon
Brady Series R6000HF Pure Resin Ribbon
Brady Series R4300 Wax/Resin Ribbon
Orderable Commercial SKUs & Distributor Part Numbers
Build & Size Your UL 508A Conductor Schedule
Import AutoCAD Electrical wire from/to reports, apply 10% scrap safety factors, and calculate exact roll quantities with 1 click.
UL 508A Frequently Asked Compliance Questions
What happens if a control panel fails UL 508A wire marking during inspection?
If wires are unlabeled or labeled with non-permanent markers (e.g., handwritten tape), the UL field representative issues a Variation Notice (Red Tag). The panel cannot receive the official UL serialized listing mark and cannot be legally installed or energized on-site until all conductors are retrofitted with certified, machine-printed wire markers.
Can I use self-laminating vinyl (B-427) instead of heat-shrink sleeves (B-342) on UL 508A panels?
Yes. Both Brady B-427 (UL 969 Recognized) and B-342 (UL 224 Recognized) satisfy UL 508A Clause 52.1. Self-laminating vinyl is preferred for retrofits and post-termination labeling, while heat-shrink sleeves provide the highest mechanical and thermal security for pre-termination factory builds.
What is the mandatory wire color code under UL 508A Clause 66.5.2?
Black is used for ungrounded AC power conductors (e.g. 480V/240V lines); Red for ungrounded AC control circuits; Blue for ungrounded DC control circuits (e.g. +24VDC); White with Blue stripe for grounded DC common; White for grounded AC neutral; and Green or Green/Yellow for equipment grounding conductors.
